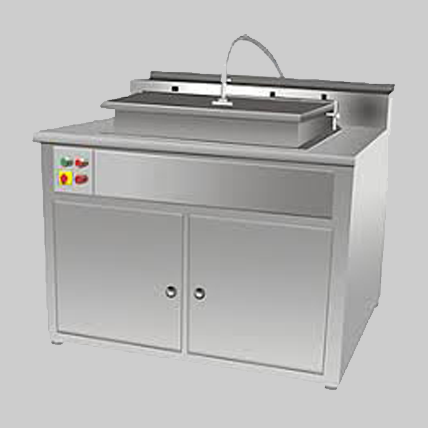

Bottle washing machine Ahmedabad, Round Bottle washing machine

Details

Aseptic Engineers are the leading Bottle washing machine Manufacturer and exporters of Bottle washing machine in India. Within a few years of our establishment we have gained a strong foothold in the market with our superior product quality and unmatched R&D. The Bottle washing machine India is a high speed, energy efficient machine extensively used in Pharmaceutical, Food and Beverages, Cosmetics and other industries.

We at Aseptic Engineers strive to keep pace with all the technological advancements with our machinery. The Bottle washing machine Ahmedabad is one of the highly efficient Round Bottle washing machine that offers various types of water washes. It can be used for bottle wash using recycled water drain, recycled water inner and outer drain, fresh water from the tank and air wash. This Round Bottle washing machine can handle bottles of different diameters with simple change over parts.

Features

Wash 60-90 bottles per minute depending on the bottle size.
Facilitate water recycle and thus is extremely eco-friendly.
Indexing device mechanism for better operations.
Various type of spray zones in machine (outside & inside)

Geneva-cam mechanism drive.
The Semi automatic bottles washing machine has complete SS 304 body and components.

As the noted Flat bottles washing machine suppliers we offer our customers durability, performance and value for money with each one of our machines.

WASHING SYSTEM

Machine provides 4 water washes & 1 Air

Wash Re-Circulated Water Drain
Wash Re-Circulated Water ( Inner &Amp; Outer ) Drain
Wash Fresh D.M.Water Collect In Tank For Re-Circulation
wash air

Complete flexibility with user for washing cycle

APPLICATIONS

Suitable for washing of bottles (30ML TO 500ML )
Mini Bottle Dia : 30MM
Max. Bottle Dia : 80MM
Suitable for washing bottles of different dia with the help of change-parts GMP
All Contact parts and covers made out from SS 304
Quick change over of parts for other size of containers.

OPERATION

The container fed manually into the bottle holders in neck down position carrying containers with indexing mechanism into the machine over fixed nozzles washes container with continuous flow.
The pumping station provides the water at the desired pressure.

TECHNICAL DATA

Machine with 2 Pumps and Tanks each of 50ltrs. Capacity
Optimum Output : 60 to 90 Bottles/Min
Power characteristics : - Main Machine : 0.5 H.P. 415 volt A.C. 3 Phase with neutral
Pumps ( 2 Nos. ) : 0.75 H.P./ Each Pump ( Total : 1.50 H.P.)

SILENT FEATURES

Machine suitable for various types of round and flat bottles and similar containers with the help of change parts.

Output 60 - 90 bottle per minute depending on the size of container.
Water re-cycling arrangement is possible as per customers need.
Machine with indexing device mechanism.
Geneva-cam mechanism drive.
Various type of spray zones in machine (outside & inside)
2 nos. SS tanks & pump provided with the machine.
Semi automatic machine-manual loading and unloading.
